25 Years of Surface Inspection & Turnkey Vision Integration

  • Low Cost to High Performance Systems
  • Easy to Use, Configurable Operator Interfaces
  • Installation, Training, Service
  • 24/7 Support
  • Plant Integration
  • Custom Reporting
  • Data Analytics
  • Long Term Data Back Up and Storage

Plastic/Film

Gel, Coating Skips, Scratches, Void, Dirt, Holes

Paper

Holes, Streaks, Smudges, Cracks, Wrinkles, Spots

Nonwovens

Thin/Thick, Holes, Clumps, Voids, Contaminate

Metal

Marks, Pin Holes, Stains, Dents, Pickling Pits, Scales

Glass

Voids, Scratches, Edge Defects, Stains, Water Marks

Coatings

Voids, Stains, Streaks, Blisters, Scratches, Fish Eyes

Max Speed
0 ft/mi
Max Width
0 ft
Max Cameras
0
Max Resolution
2 K

100% Inspection Of Surfaces

  • Turnkey solution for 2D surface inspection
  • Inspect rolls, sheets, coils, etc.
  • Repeat, density analysis, classification, and more
  • Offline yield analysis review tool
  • Live remote monitoring and inspection control

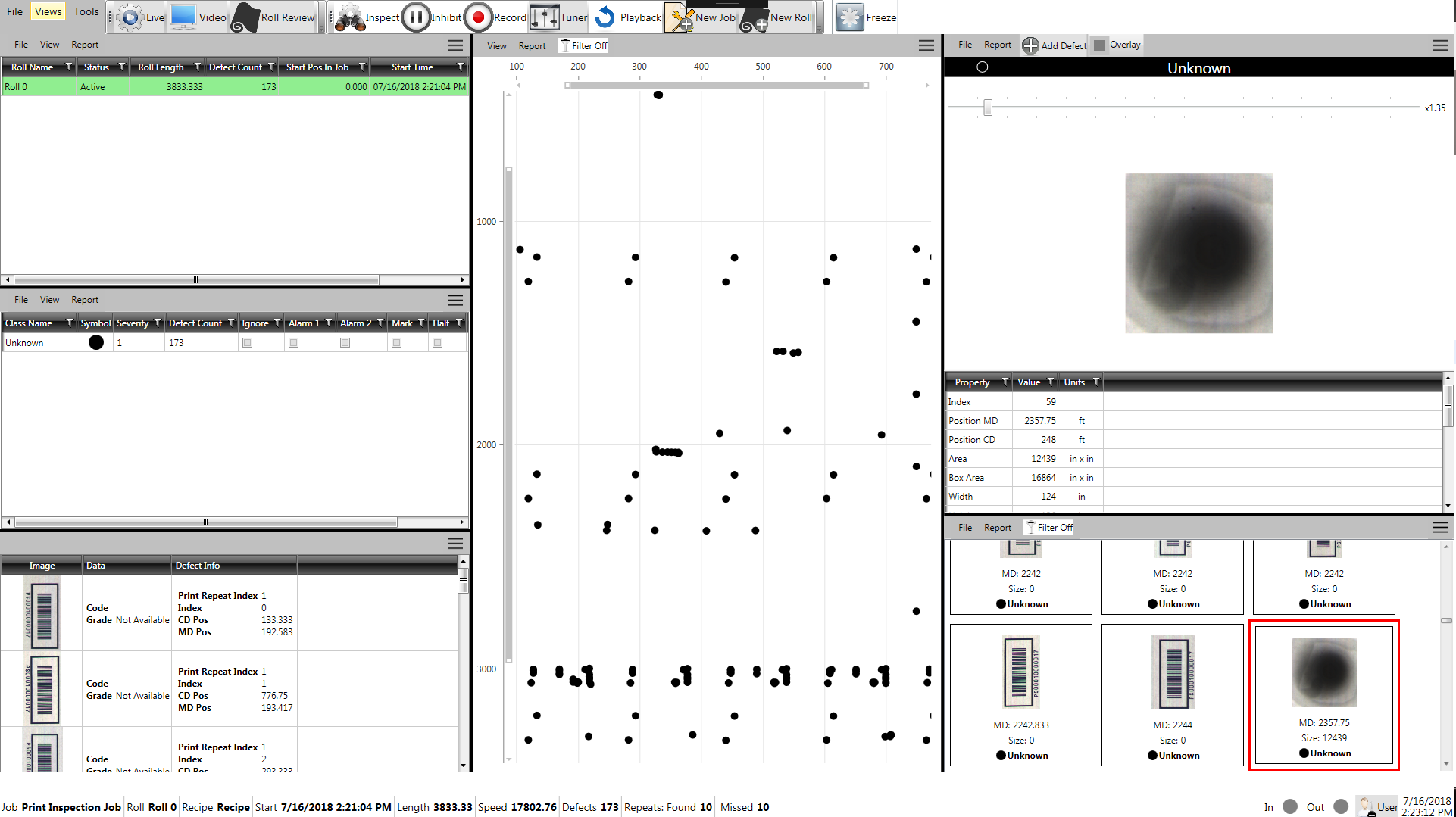

aiSurf Inspection Live Page

Defect Detection

Multiple inspection algorithms to detect subtle defects

Defect Classification

Multilevel classification using deep learning and rules based classifiers

Repeating Defect Detection

Automatic detection and pitch calculation of repeating defects

Defect Density Analysis

Density analysis based on user defined criteria

Decision Matrix

User defined decision matrix to control actions on defect detection

Discrete I/O

Digital I/O for inspection control, alarms, and defect marking

User Interface and Reports

Intuitive user interface to view inspection results and reports

Live Video and Recording

Full resolution live video display, recording, and playback

Reports

Customizable PDF, HTML, XML, and CVS reports

Database Storage

Open schema database to store inspection results

Plant Integration

Plant integration via PLC, Sockets, and Files.

OPC Server

Easily connects to SCADA systems via OPC interface

aiSurf-LC

  • Lowest Cost Turnkey System
  • Uses One or Two 2K, 4K, or 8K Cameras
  • Typically Used for Plastic, Film, and Non-Woven
  • Suitable for Slow Moving or Narrow Webs
  • Packaged with Essential Inspection Tools
  • Easy to Install and Maintain
  • Simplified User Interface

aiSurf-Pro

  • Scalable High Performance System
  • Supports up to 16 2K/4K/8K GigE Cameras
  • Multiple Defect Detection Algorithms
  • Machine Learning Classifier
  • Repeat, Density, and Streak Analysis
  • Live Remote and Yield Analysis
  • Detailed PDF, CSV, and XML Reports

aiSurf-Ultra

  • High Speed and High Resolution Inspection System
  • Supports up to 16 2K/4K/8K GigE Cameras
  • Line Rates up to 300,000 lines/s
  • Deep Learning Classifier
  • Repeat, Density, and Streak Analysis
  • Advanced Defect Detection
  • Detailed PDF, CSV, and XML Reports

aiSurf-Ultimate

  • Concurrent Color and Height Acquisition
  • Uses Stereo Line Scan Cameras
  • Dense Depth Maps, even for Large Widths
  • 2D, 3D Defect Detection and Measurement
  • Machine Learning Classifier
  • 3D point-cloud processing
  • Detailed PDF, CSV, and XML Reports

aiSurf-Color

  • Full Resolution Color Image Acquisition
  • Bayer or Trilinear Color Cameras
  • Color Defect Detection Tools
  • Measures Color Variations Over 100% of Surface
  • Defect Detection and Classification
  • Recording and Playback
  • Detailed PDF, CSV, and XML Reports

aiSurf-DVR

  • Full Width Imaging Using Line Scan Cameras
  • Acquires Gray Scale or Color Images
  • Records 100% of Sheet or Coil Surface
  • Use Events to Trigger Recording
  • High Speed Recording Using NVMe and SSD
  • Recording Capacity up to 10 TB
  • Flexible Viewing and Image Annotation
